Dunlop Acoustic Underlay for Timber Floors
Moisture control and noise levels are two of the major and recurring issues surrounding floating timber floors, impacting on their performance across many residential and commercial environments.
Dunlop Acoustic Underlay for timber floors has gone through extensive testing by the CSIRO to determine the acoustic performance and compliance with the standard set by the BCA.
Dunlop's timber flooring underlay's all exceed the standard. Dunlop timber flooring underlays are Australian Made and guaranteed for the life of the flooring.
Dunlop Timbermate
This underlay is designed to reduce sound transfer whilst also providing added moisture protection. Recommended for use with most common laminate and engineered timber floating floors.
Technical Specification
Property | Dunlop Timbermate |
Thickness | 2 + / - 0.2 mm |
Foam | Closed Cell Polyethylene (BLUE) |
Laminate | White Polyethylene Laminate 70 μm |
Place of Manufacture | Australia |
Roll Length | 50 m |
Roll Width | 1.2 m |
Roll Size | 60 m2 |
Moisture Barrier | Yes |
Poly-Wrap | Timbermate Clear Wrap & Printed Blue Polyethylene |
Impact sound rating Ln,w + C1 | 60 dB |
BCA Compliant | Yes |
The terms to describe the impact sound insulation of the floor is the "weighted normalised impact sound pressure level" (Ln,w) plus the "spectrum adaptation" (C1). The lower the Ln,w + C1 for the flooring assembly, the better the performance of the floor in terms of impact sound insulation.
Info Links

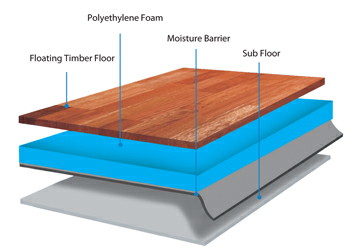

Dunlop Thermacoustic
Technical Specification
Property | Dunlop Thermacoustic |
Thickness | 3 + / - 0.3 mm |
Foam | Closed Cell Polyethylene (BLUE) |
Laminate | Silver Metalised Polyester Laminate 40 μm |
Place of Manufacture | Australia |
Roll Length | 50 m |
Roll Width | 1.2 m |
Roll Size | 60 m2 |
Moisture Barrier | Yes |
Weight per Roll | 8.0 kg |
Poly-Wrap | Thermacoustic Clear Wrap & Printed Blue Polyethylene |
Impact sound rating Ln,w + C1 | 59 dB |
BCA Compliant | Yes |
Dunlop Thermacoustic conforms to the standard AS ISO 717.2-2004 & BCA 2010 Spec F5.2 set by the Building Code of Australia (BCA) for acoustic performance Ln,w + C1 = 62 dB. For further information open the links below.
Price: $5.00 + GST per m2 or $300 + GST per Roll (60 m2).
Underlay purchases are full rolls only.Info Links
Dunlop Timber Underlay BrochureDunlop Timbercushion

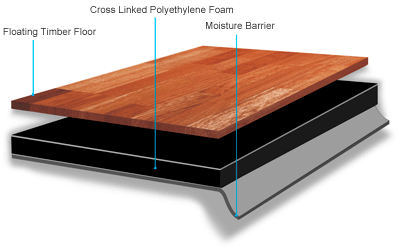

It provides superior acoustic performance within multistorey applications offering improved privacy and comfort levels for the occupants. Recommended with most common engineered wood and solid timber floating floors where superior noise reduction and resilience is required. Dunlop Timbercushion is treated with one of the world's leading antimicrobial agents Ultra-Fresh and it offers protection from mould, mildew, fungi and bacterial growth for a more hygienic environment.
Technical Specification
Property | Dunlop Timbercushion |
Thickness | 2 + / - 0.2 mm |
Foam | Black, Cross Linked Polyethylene |
Laminate (Bottom) | Silver Polyethylene Laminate, Printed Back, 50 μm |
Place of Manufacture | Australia |
Roll Length | 20 m |
Roll Width | 1600 mm + 200 mm overlap |
Roll Size | 32 m2 |
Moisture Barrier | Yes |
Poly-wrap | Clear polyethylene wrap tied at one end |
Impact sound rating Ln,w + C1 | 50 dB |
BCA Compliant | Yes |
Dunlop Aquacoustic conforms to the standard AS ISO 717.2-2004 & BCA 2010 Spec F5.2 set by the Building Code of Australia (BCA) for acoustic performance Ln,w + C1 = 62 dB. For further information open the links below.
Please Note: Bare Slab Ln,w + C1 result was 68 dB. Testing was conducted in accordance with standard ISO 140-6, over a 150 mm reinforced concrete sub-floor. The terms to describe the impact sound insulation of the floor is the "weighted normalised impact sound pressure level" (Ln,w) plus the "spectrum adaptation" (C1). The lower the Ln,w + C1 for the flooring assembly, the better the performance of the floor in terms of impact sound insulation.
Price: $11.00 + GST m2 or $350 + GST per Roll (32 m2).
Underlay purchases are full rolls only.
Info Links
Dunlop Timber Underlay BrochureDunlop Aquacoustic
Aquacoustic timber flooring underlay provides unsurpassed acoustic performance. Incorporating a 200 micron moisture resistant barrier, it also offers superior moisture protection. Recommended for use with most common engineered wood and solid timber floating floors where superior noise reduction, moisture protection and resilience is required. Dunlop Aquacoustic is treated with one of the world's leading antimicrobial agents Ultra-Fresh which offers protection from mould, mildew, fungi and bacterial growth for a more hygienic environment.
Technical Specification
Property | Dunlop Aquacoustic |
Thickness | 3 + / - 0.3 mm |
Foam | Silver / Grey, Cross Linked Polyethylene |
Laminate (Bottom) | Black Polyethylene Laminate, Printed White / Light Grey 200 μm |
Place of Manufacture | Australia |
Roll Length | 20 m |
Roll Width | 1600 mm + 200 mm overlap |
Roll Size | 32 m2 |
Moisture Barrier | Yes |
Poly-wrap | Clear polyethylene wrap tied at one end |
| Impact sound rating Ln,w + C1 | 49 dB |
BCA Compliant | Yes |
Dunlop Aquacoustic conforms to the standard AS ISO 717.2-2004 & BCA 2010 Spec F5.2 set by the Building Code of Australia (BCA) for acoustic performance Ln,w + C1 = 62 dB. For further information open the links below.
Please Note: Bare Slab Ln,w + C1 result was 68 dB. Testing was conducted in accordance with standard ISO 140-6, over a 150 mm reinforced concrete sub-floor.
The terms to describe the impact sound insulation of the floor is the "weighted normalised impact sound pressure level" (Ln,w) plus the "spectrum adaptation" (C1). The lower the Ln,w + C1 for the flooring assembly, the better the performance of the floor in terms of impact sound insulation.
Price: $11.00 + GST m2 or $350 + GST per Roll (32 m2).
Underlay purchases are full rolls only.
Dunlop Timber Underlay Brochure
Info Links
Dunlop Timber Underlay Brochure
Thermal Resistance on Dunlop Timber Flooring Underlay Range
Acoustic Performance of Dunlop Timber Flooring Underlay Range - Combination with a Floating Floor
